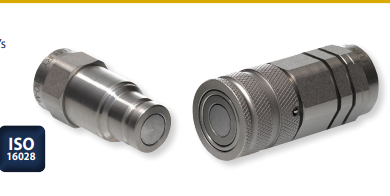

蘇州意達（dá）特流體設備有限公司（sī）優惠供應（yīng）進口HOLMBURY液壓快速（sù）接頭,平麵樣式耐高壓ISO16028標準。

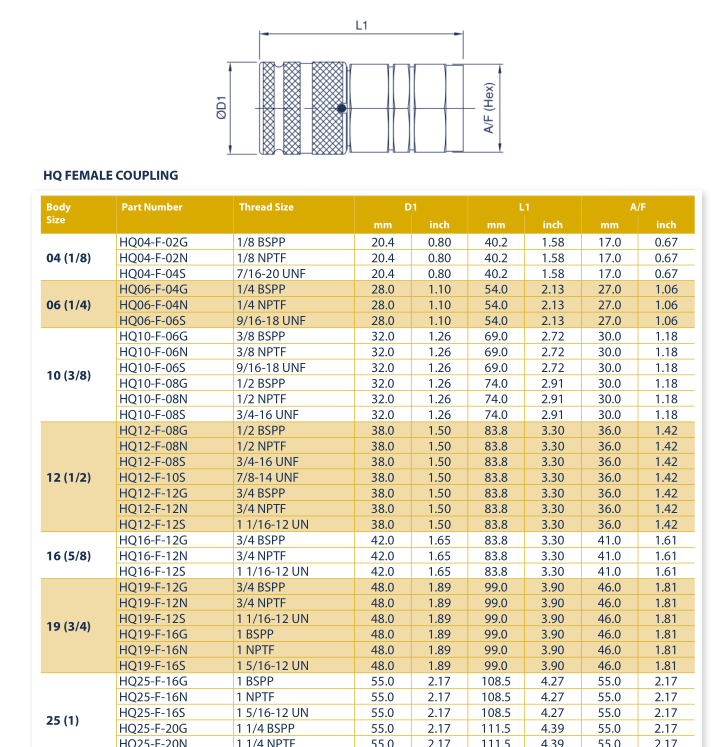

Body
Size
Part Number Thread Size D1 L1 A/F
mm inch mm inch mm inch
04 (1/8)
HQ04-F-02G 1/8 BSPP 20.4 0.80 40.2 1.58 17.0 0.67
HQ04-F-02N 1/8 NPTF 20.4 0.80 40.2 1.58 17.0 0.67
HQ04-F-04S 7/16-20 UNF 20.4 0.80 40.2 1.58 17.0 0.67
06 (1/4)
HQ06-F-04G 1/4 BSPP 28.0 1.10 54.0 2.13 27.0 1.06
HQ06-F-04N 1/4 NPTF 28.0 1.10 54.0 2.13 27.0 1.06
HQ06-F-06S 9/16-18 UNF 28.0 1.10 54.0 2.13 27.0 1.06
10 (3/8)
HQ10-F-06G 3/8 BSPP 32.0 1.26 69.0 2.72 30.0 1.18
HQ10-F-06N 3/8 NPTF 32.0 1.26 69.0 2.72 30.0 1.18
HQ10-F-06S 9/16-18 UNF 32.0 1.26 69.0 2.72 30.0 1.18
HQ10-F-08G 1/2 BSPP 32.0 1.26 74.0 2.91 30.0 1.18
HQ10-F-08N 1/2 NPTF 32.0 1.26 74.0 2.91 30.0 1.18
HQ10-F-08S 3/4-16 UNF 32.0 1.26 74.0 2.91 30.0 1.18
12 (1/2)
HQ12-F-08G 1/2 BSPP 38.0 1.50 83.8 3.30 36.0 1.42
HQ12-F-08N 1/2 NPTF 38.0 1.50 83.8 3.30 36.0 1.42
HQ12-F-08S 3/4-16 UNF 38.0 1.50 83.8 3.30 36.0 1.42
HQ12-F-10S 7/8-14 UNF 38.0 1.50 83.8 3.30 36.0 1.42
HQ12-F-12G 3/4 BSPP 38.0 1.50 83.8 3.30 36.0 1.42
HQ12-F-12N 3/4 NPTF 38.0 1.50 83.8 3.30 36.0 1.42
HQ12-F-12S 1 1/16-12 UN 38.0 1.50 83.8 3.30 36.0 1.42
16 (5/8)
HQ16-F-12G 3/4 BSPP 42.0 1.65 83.8 3.30 41.0 1.61
HQ16-F-12N 3/4 NPTF 42.0 1.65 83.8 3.30 41.0 1.61
HQ16-F-12S 1 1/16-12 UN 42.0 1.65 83.8 3.30 41.0 1.61
19 (3/4)
HQ19-F-12G 3/4 BSPP 48.0 1.89 99.0 3.90 46.0 1.81
HQ19-F-12N 3/4 NPTF 48.0 1.89 99.0 3.90 46.0 1.81
HQ19-F-12S 1 1/16-12 UN 48.0 1.89 99.0 3.90 46.0 1.81
HQ19-F-16G 1 BSPP 48.0 1.89 99.0 3.90 46.0 1.81
HQ19-F-16N 1 NPTF 48.0 1.89 99.0 3.90 46.0 1.81
HQ19-F-16S 1 5/16-12 UN 48.0 1.89 99.0 3.90 46.0 1.81
25 (1)
HQ25-F-16G 1 BSPP 55.0 2.17 108.5 4.27 55.0 2.17
HQ25-F-16N 1 NPTF 55.0 2.17 108.5 4.27 55.0 2.17
HQ25-F-16S 1 5/16-12 UN 55.0 2.17 108.5 4.27 55.0 2.17
HQ25-F-20G 1 1/4 BSPP 55.0 2.17 111.5 4.39 55.0 2.17
HQ25-F-20N 1 1/4 NPTF 55.0 2.17 111.5 4.39 55.0 2.17
HQ25-F-20S 1 5/8-12 UN 55.0 2.17 111.5 4.39 55.0 2.17
32 (1 1/4)
HQ32-F-24G 1 1/2 BSPP 80.0 3.15 132.2 5.20 70.0 2.76
HQ32-F-24N 1 1/2 NPTF 80.0 3.15 132.2 5.20 70.0 2.76
HQ32-F-24S 1 7/8-12 UN 80.0 3.15 132.2 5.20 70.0 2.76
40 (1 1/2)
HQ40-F-32G 2 BSPP 102.8 4.05 147.3 5.80 80.0 3.15
HQ40-F-32N 2 NPTF 102.8 4.05 147.3 5.80 80.0 3.15
HQ40-F-32S 2 1/2-12 UN 102.8 4.05 147.3 5.80 80.0 3.15
